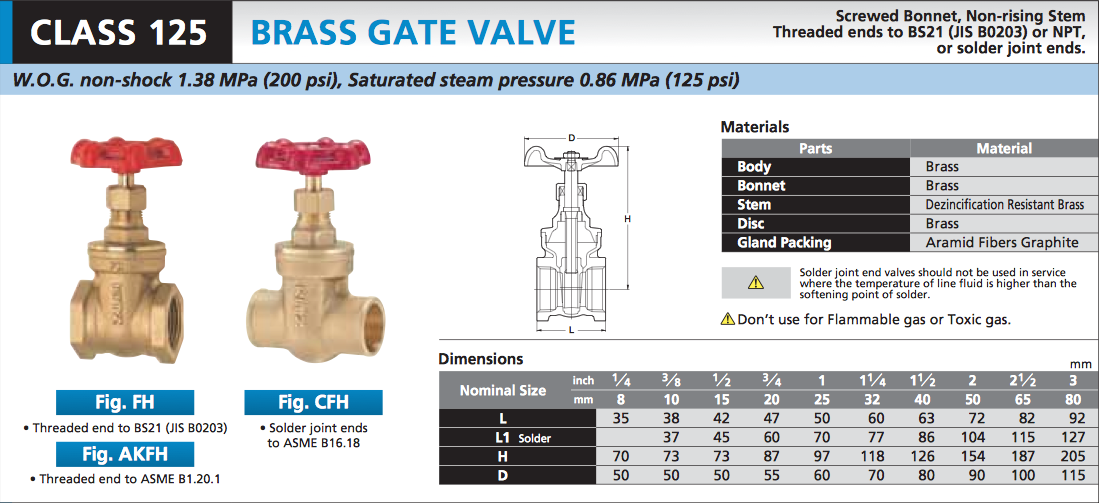

Brass Gate Valve Class 125

Brass Gate Valve Class 125

  • Screwed Bonnet
  • Non-rising stem
  • Threaded ends to BS21 (JIS B0203) or NPT, or Solder joint ends.
  • W.O.G. non-shock 1.38 MPa ( 200 psi)
  • Saturated steam pressure 0.86 MPa (125 psi )

Material :

Body : Brass

Bonnet : Brass

Stem : Dezincification Resistant  Brass

Disc : Brass

Gland Packing : Aramid fibers graphite



Dimensions :

Size 1/4 Inch (8 mm)

L : 35

L1 Solder :

H : 70

D : 50

Size 3/8 Inch (10 mm)

L : 38

L1 Solder : 37

H : 73

D : 50

Size 1/2 Inch (15 mm)

L : 42

L1 Solder : 45

H : 73

D : 50

Size 3/4 Inch (20 mm)

L : 47

L1 Solder : 60

H : 87

D : 55

Size 1 Inch (25 mm)

L : 50

L1 Solder : 70

H : 97

D : 60

Size 1 1/4 Inch (32 mm)

L : 60

L1 Solder : 77

H : 118

D : 70

Size 1 1/2 Inch (40 mm)

L : 63

L1 Solder : 86

H : 126

D : 80

Size 2 Inch (50 mm)

L : 72

L1 Solder : 104

H : 154

D : 90

Size 2 1/2 Inch (65 mm)

L : 82

L1 Solder : 115

H : 187

D : 100

Size 3 Inch (80 mm)

L : 92

L1 Solder : 127

H : 205

D : 115
